Viair 48500 485C Gen. 2 Air Compressor Kit - Platinum

Brand: ViairPart Number: 48500
Available
Ships in 1-2 weeks

  • Guaranteed Quality

    Our superior products are guaranteed to last

  • Financing

    Build you dream truck with flexible financing options

  • Expert Support

    Rely on our expert for advice

  • 30 Day Returns

    Most items can be returned within 30 days.

Description

Viair's brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in stealth black finishes, and comes equipped with either a stainless steel or a black sleeved stainless steel leader hose and an inline check valve.

Recommended Components

  • 2.5 Gallon tank (P/N 91028)

Note

  • Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft lb. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft lb

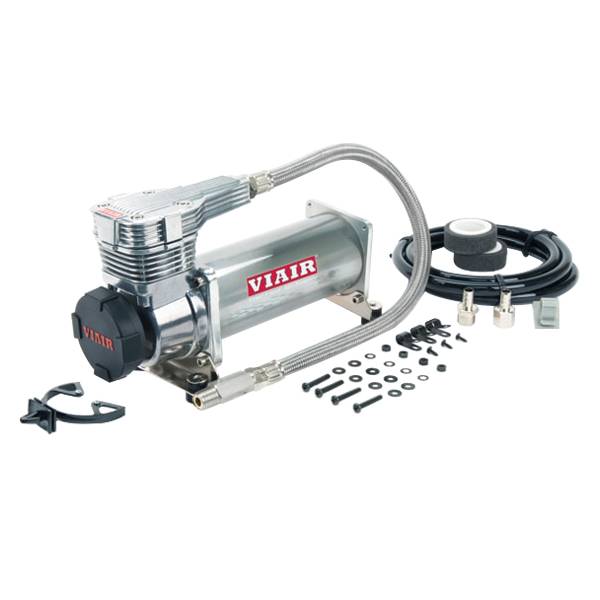

Features

  • Thermal overload protector
  • 485C (platinum or stealth black) compressor
  • Air filter assembly
  • Viair removable filter cover
  • Replacement air filter elements
  • Remote mount filter assembly
  • Leader hose clips
  • Air line clip with included hardware
  • Mounting hardware
  • Stainless steel braided leader hose with inline check valve
  • Air line (for remote mount filter installation)

Specs

  • C-Models: 485C
  • Voltage: 12 V
  • Color/Finish: Platinum
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Maximum Working Pressure: 200 PSI
  • Maximum Air Tank Size: 5.0 Gallon
  • Combined Maximum Amp Draw: 23 A
  • Ingress Protection Rating: IP67
  • CFM: 2.24 CFM
  • Length: 10 5/8"
  • Width: 4 1/8"
  • Height: 6 1/2"
  • Product Weight: 11.10 lb
