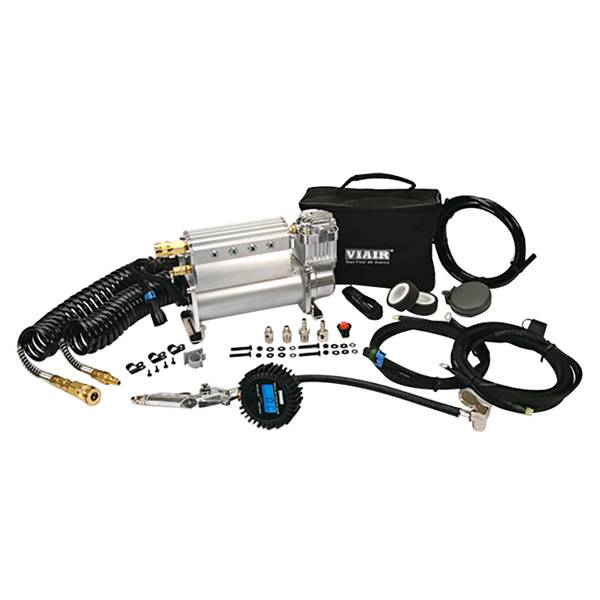

Viair 45055 Constant Duty Automatic Deployment Air Systems for up to 37" Tires

Brand: ViairPart Number: VIA45055
Available
Ships in 1-2 weeks

  • Guaranteed Quality

    Our superior products are guaranteed to last

  • Financing

    Build you dream truck with flexible financing options

  • Expert Support

    Rely on our expert for advice

  • 30 Day Returns

    Most items can be returned within 30 days.

Description

Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a digital tire inflation kit. Additionally, a wiring harness is included to make the installation a plug and play process, with very little install time required.

Features

  • 450C compressor with thermal overload protector
  • Extruded aluminum air tank (12-port)
  • Toggle switch
  • Air line for remote mount air filter installation
  • (2) Remote mount air filter relocation fittings
  • 1/8" NPT drain cock
  • 1/4" NPT safety valve
  • (8) 1/4" NPT hex plug
  • 1/4" NPT sealed pressure switch (85/105 PSI)
  • (2) 1/4" NPT BSP adapter
  • 1/4" NPT automatic coupler

Wiring Harness

  • 30-amp Delphi connector set
  • 60-amp fuse holder
  • 40-amp fuse
  • (2) 1/4" ring terminal
  • 5/16" Ring terminal
  • (3) Female spade terminal connector

Digital Tire Inflation Kit

  • 30' Inflation hose with automatic couplers
  • Digital tire inflation gun

Specs

  • Voltage: 12 V
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Maximum Amp Draw: 23 A
  • Ingress Protection Rating: IP67
  • CFM: 1.80 CFM
  • Length: 9 3/8"
  • Width: 4"
  • Height: 6 3/4"
  • Product Weight: 12.5 lb

More Information

  • Brand:

    Viair

  • Brand SKU:

    VIA45055
