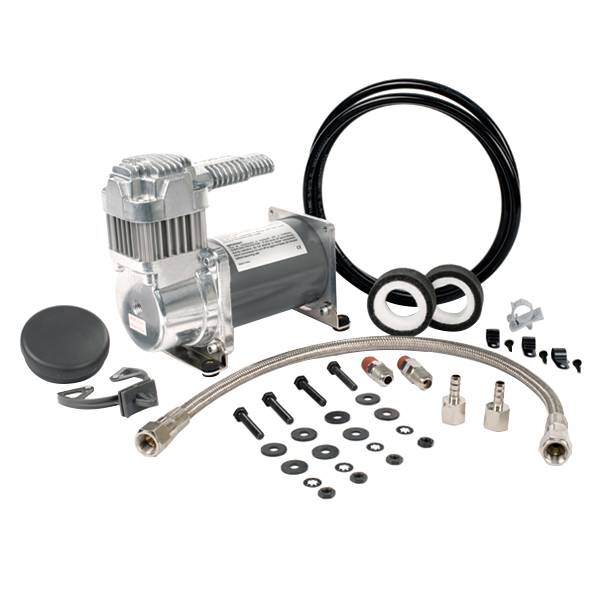

Viair 25050 250C Industrial Grade Series Air Compressor Kit

Brand: ViairPart Number: 25050
Available
Ships in 1-2 weeks
FREE SHIPPING

  • Guaranteed Quality

    Our superior products are guaranteed to last

  • Financing

    Build you dream truck with flexible financing options

  • Expert Support

    Rely on our expert for advice

  • 30 Day Returns

    Most items can be returned within 30 days.

Description

Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.

Recommended Components

  • 0.5 Gallon tank (P/N 91005)
  • 1.0 Gallon tank (P/N 91010, 91014)
  • 2.0 Gallon tank (P/N 91022)
  • 2.5 Gallon tank (P/N 91025)
  • 12 V Relay (P/N 93940, 93977, 93980)
  • 24 V Relay (P/N 93943, 93979)
  • Pressure switches (P/N 90100, 90101, 90102)
  • Pressure switches with relay (P/N 90110, 90111, 90113)
  • Sealed pressure switches (P/N 90217, 90223, 90227)

Features

  • Thermal overload protector
  • Vibration isolators
  • Mounting hardware
  • Heavy duty 1/4" NPT check valve
  • Stainless steel braided PTFE-lined leader hose
  • Air line for remote mount air filter
  • Remote mount air filter assembly
  • (2) Replacement air filter elements
  • Installation instructions

Specs

  • Product Line: Industrial Grade Series
  • C-Models: 250C
  • Voltage: 12 V
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Maximum Air Tank Size: 2.5 Gallon
  • Maximum 12 V Amp Draw: 11 A
  • Ingress Protection Rating: IP67
  • Maximum Ambient Temp: +158°F
  • Minimum Ambient Temp: -40°F
  • CFM: 0.88 CFM
  • Length: 7 3/8"
  • Width: 3 7/8"
  • Height: 6 3/4"
  • Product Weight: 6.75 lb

More Information

Brand Viair
Brand SKU 25050
Features
  • Thermal overload protector
  • Vibration isolators
  • Mounting hardware
  • Heavy duty 1/4" NPT check valve
  • Stainless steel braided PTFE-lined leader hose
  • Air line for remote mount air filter
  • Remote mount air filter assembly
  • (2) Replacement air filter elements
  • Installation instructions
Specs
  • Product Line: Industrial Grade Series
  • C-Models: 250C
  • Voltage: 12 V
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Maximum Air Tank Size: 2.5 Gallon
  • Maximum 12 V Amp Draw: 11 A
  • Ingress Protection Rating: IP67
  • Maximum Ambient Temp: +158°F
  • Minimum Ambient Temp: -40°F
  • CFM: 0.88 CFM
  • Length: 7 3/8"
  • Width: 3 7/8"
  • Height: 6 3/4"
  • Product Weight: 6.75 lb
