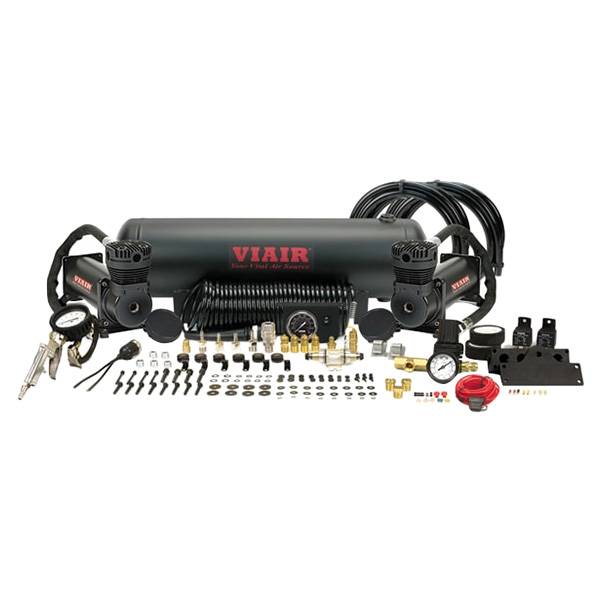

Viair 20022 480C Dual Onboard Air System - Stealth Black

Brand: ViairPart Number: VIA20022
Available
Ships in 1-2 weeks

  • Guaranteed Quality

    Our superior products are guaranteed to last

  • Financing

    Build you dream truck with flexible financing options

  • Expert Support

    Rely on our expert for advice

  • 30 Day Returns

    Most items can be returned within 30 days.

Description

Viair's dual 480C onboard air system has an increased head port size of 3/8" NPT, allowing it to provide the highest CFM on 100% duty cycle compressors rated at 100PSI. This onboard air system is a pre-packaged compressed air solution that offers two chrome or stealth black 480C 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.

Note

  • Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft lb. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft lb

Features

  • 2.5 Gallon 200 PSI Viair air tank
  • (2) 480C chrome or stealth black Viair compressors with thermal overload protectors
  • Illuminated dash panel gauge kit, black face 200 PSI
  • Tire inflation gun with 200 PSI gauge
  • 0-220 PSI pressure regulator
  • Sealed pressure switch (165 PSI on, 200 PSI off)
  • 1/4" Drain cock
  • (2) 40-amp relays
  • 60-Amp Inline fuse holder
  • 1/4" Quick connect coupler (M)
  • 1/4" 250 PSI safety valve
  • (4) 1/4" Compression fittings
  • 6-Port billet manifold with mounting bracket (1/4")
  • (2) 20 ft 1/4" air line included
  • 5pc. 1/4" NPT plugs kit
  • 30 ft extension coil hose

Specs

  • C-Models: 480C
  • Color/Finish: Stealth Black
  • Voltage: 12 V
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Maximum Working Pressure: 200 PSI
  • Maximum Amp Draw: 40 A
  • Ingress Protection Rating: IP67
  • CFM: 3.53 CFM

More Information

  • Weight:

    1

  • Brand:

    Viair

  • Brand SKU:

    VIA20022
