Viair 20002 Continuous Duty Onboard Air System for up to 37" Tires

Brand: ViairPart Number: VIA20002
Available
Ships in 1-2 weeks
FREE SHIPPING

  • Guaranteed Quality

    Our superior products are guaranteed to last

  • Financing

    Build you dream truck with flexible financing options

  • Expert Support

    Rely on our expert for advice

  • 30 Day Returns

    Most items can be returned within 30 days.

Description

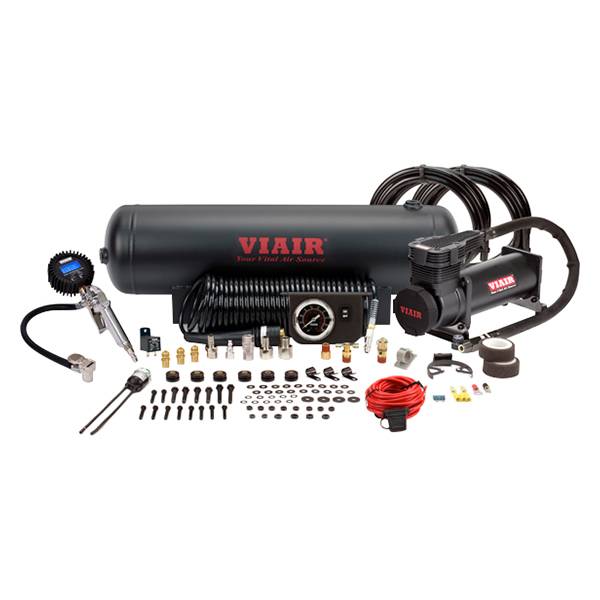

Viair's continuous duty onboard air system is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 485C CE compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Recommended Components

  • Pressure regulator (P/N 90150)
  • 12 V sealed relay (P/N 93944)

Note

  • Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft lb. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft lb

Features

  • 2.5 Gallon Viair air tank (200 PSI)
  • 485C stealth black Viair compressor with thermal overload protector
  • Digital tire inflation gun with 180 PSI gauge
  • 30 ft inside braided black coil hose with quick connects
  • 1/4" NPT quick connect stud (F)
  • 1/4" NPT quick connect coupler (F)
  • Dash panel gauge with on/off switch
  • Sealed pressure switch (165 PSI on, 200 PSI off)
  • Reducer 1/8" NPT (F) to 1/4" NPT (M)
  • Reducer 3/8" NPT (F) to 1/4" NPT (M)
  • 1/4" NPT 250 PSI safety valve
  • 1/4" NPT drain cock
  • (3) 1/4" NPT compression fittings
  • 4" Strip of grommet material
  • 20ft 12-gauge wire with inline fuse holder
  • Electrical connections
  • Accessory airline

Specs

  • Voltage: 12 V
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Maximum Working Pressure: 200 PSI
  • Maximum Air Tank Size: 5.0 Gallon
  • Maximum Amp Draw: 23 A
  • Ingress Protection Rating: IP67
  • CFM: 2.24 CFM
  • Length: 10 5/8"
  • Width: 4 1/8"
  • Height: 6 1/2"
  • Product Weight: 11.10 lb

More Information

Brand Viair
Brand SKU VIA20002
Features
  • 2.5 Gallon Viair air tank (200 PSI)
  • 485C stealth black Viair compressor with thermal overload protector
  • Digital tire inflation gun with 180 PSI gauge
  • 30 ft inside braided black coil hose with quick connects
  • 1/4" NPT quick connect stud (F)
  • 1/4" NPT quick connect coupler (F)
  • Dash panel gauge with on/off switch
  • Sealed pressure switch (165 PSI on, 200 PSI off)
  • Reducer 1/8" NPT (F) to 1/4" NPT (M)
  • Reducer 3/8" NPT (F) to 1/4" NPT (M)
  • 1/4" NPT 250 PSI safety valve
  • 1/4" NPT drain cock
  • (3) 1/4" NPT compression fittings
  • 4" Strip of grommet material
  • 20ft 12-gauge wire with inline fuse holder
  • Electrical connections
  • Accessory airline
Specs
  • Voltage: 12 V
  • Motor Type: Permanent Magnetic Motor
  • Duty Cycle: 100% @ 200 PSI
  • Maximum Working Pressure: 200 PSI
  • Maximum Air Tank Size: 5.0 Gallon
  • Maximum Amp Draw: 23 A
  • Ingress Protection Rating: IP67
  • CFM: 2.24 CFM
  • Length: 10 5/8"
  • Width: 4 1/8"
  • Height: 6 1/2"
  • Product Weight: 11.10 lb
