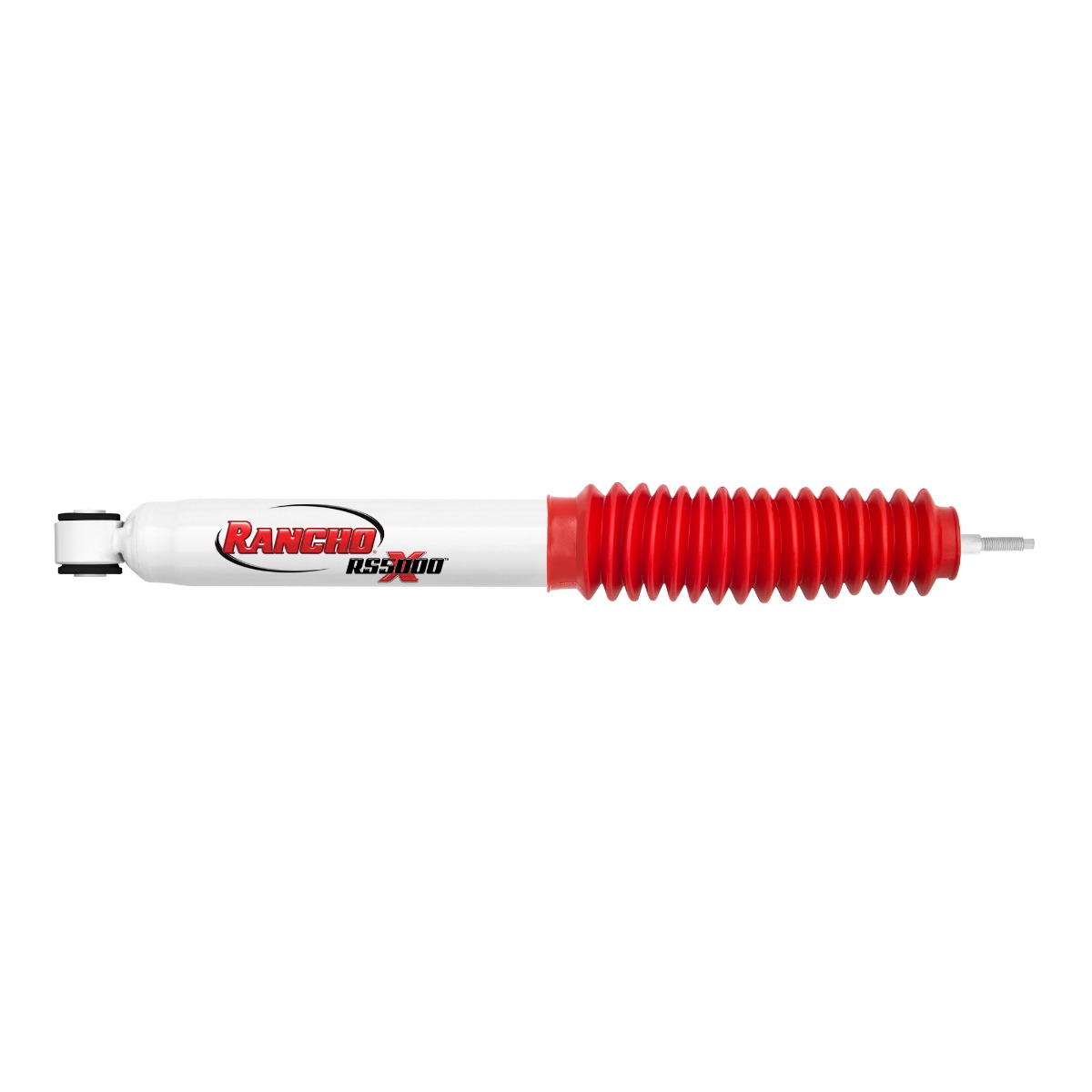

Rancho RS55324 RS5000X Rear Suspension Shock Absorber for Toyota Tundra 2007-2021

Brand: RanchoPart Number: RS55324
Available
Ships in 2-4 business days

Make Sure It Fits!

Toyota Tundra
2007-2021

  • Guaranteed Quality

    Our superior products are guaranteed to last

  • Financing

    Build you dream truck with flexible financing options

  • Expert Support

    Rely on our expert for advice

  • 30 Day Returns

    Most items can be returned within 30 days.

Description

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho RS5000 X shocks deliver improved overall on- and off-road handling and performance.

Features

  • Improved Handling and Performance: Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • Minimizes Rough Ride: Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • Strong and Durable: Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • Handles Extreme Temperature Changes: Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • Smooth Performance: Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • Reduces Fade: Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • Maintains Vehicle Control: Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • Built To Last: Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area

Specs

  • Product Line: RS5000X
  • Position: Rear
  • Color: White
  • Shaft Material: Nitrocarburized
  • Body Material: Steel
  • Cylinder Material: Steel
  • Dust Shield Material: Rubber
  • Type: Telescopic
  • Mounting Hardware Included: Yes
  • Lower Mount Type: Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
  • Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
  • Boot Included: Yes
  • Gas Charged: Yes
  • Finish: Painted
  • Shock Absorber Rod End Measuring Point: Center of Loop
  • Shock Absorber Body End Measuring Point: Base of Stem
  • Body Color: White
  • Internal Construction Type: Twin Tube
  • Grade Type: Performance
  • Cylinder Color: White
  • Dust Shield Included: Yes
  • Upper Mount Code: S5
  • Lower Mount Code: LS38
  • Internal Rebound Bumper: Yes
  • Valving Type: Progressive
  • Active or Passive Suspension: Passive
  • Cylinder Finish: Painted
  • Parts Packs: P01167
  • Dust Shield Color: Red
  • Extended Length: 24.38"
  • Extended Length: 619.3 mm
  • Shock Stroke: 9.65"
  • Shock Stroke: 245.1 mm
  • Body Diameter: 2.251"
  • Body Diameter: 57.2 mm
  • Compressed Length: 14.73"
  • Compressed Length: 374.1 mm
  • Travel Length: 9.65"
  • Travel Length: 245.1 mm
  • Rod Diameter: 0.622"
  • Rod Diameter: 15.8 mm
  • Cylinder Outside Diameter: 2.251"
  • Cylinder Outside Diameter: 57.2 mm
  • Dust Shield Diameter: 2.99"
  • Dust Shield Diameter: 75.946 mm
  • Shock Absorber Bore Size: 1.38"
  • Shock Absorber Bore Size: 35 mm
  • Warranty: Limited Lifetime Warranty
